VPD5: Heavy Duty Deep Vacuum Pump 5.5CFM 2-Stage Rotary Vane, Professional HVAC Field Service Tools

$277.77 $247.77

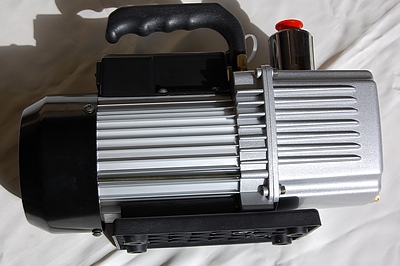

VPD5: Heavy Duty Deep Vacuum Pump 5.5CFM 2-Stage Rotary Vane
[VPD5]

VPD5: Heavy Duty Deep Vacuum Pump 5.5CFM 2-Stage Rotary Vane

BRAND NEW, NOT REFURBISHED ITEM.

model: VPD5; single phase 110 VAC; 2 stage DEEP VACUUM Heavy Continuous Duty PUMP,15-MICRON RATING, BEST in this industry! 5.5 CFM, 1/2 HP power. Over $350 at retail.
WE DO NOT SELL ANY THING THAT is supposed TO WORK, WE SELL EVERY THING THAT IS GUARANTEED TO WORK! IF THIS MAKE SENSE TO YOU, BUY FROM US!

This pump may replace Alcatel Pascal 2005i/2010i pumps for most their operations FEATURES:

  • Aluminum ALLOY CASING: Alloy casing has high heat - dissipation keeping motor and pump cool, light weight and efficient.
  • Two-Stage Rotary Vane Deep Vacuum Pump
  • Direct drive motor allowing easy starting and is maintenance free.
  • Silicon steal parts where metal fatigue occur, making our pumps more durable.
  • Direct coupling between the motor and pump results in quiet running and good performance.
  • FORCE FED LUBRICATION Provides clean, filtered oil to all internal bearings and wearing surfaces regardless of the pump operation. Cleaner oil reduces ware and break downs.
  • Great tool for: System evacuation(Refrigeration or Air Conditioning), Printing, medical, Vacuum Packing, Hot Forming Plastics and other requirements where a high quality pump may be required.
  • Oil drain valve positioned at bottom of oil reservoir.
  • SPECIFICATION:
    POWER SUPPLY :110 VOLT
    PUMPING RATE: 5.5 CFM
    POWER: 1/2 HP(380 W)
    INTAKE PORT: 1/4 inch SAE, and 3/8 inch SAE flair
    WEIGHT: 27 Lb
    MAX VACUUM:15 MICRONS, best rating in the industry!
  • Come with a bottle of vacuum oil, just dump it in, you are ready to go!
  • Compare to any supplier before coming back to pick this up. We have walked extra miles testing the pumps before we pack it. Every pump has been tested to pull to the max vacuum twice, and dumped the vacuum oil twice to give you an extra clean pump inside out!


WE SUPPLY HVAC SCHOOLS AND CONTRACTORS!
EMAIL ALL QUESTIONS TO JOHN

Note: every pump comes with a power cord, power switch on the pump, and a bottle of vacuum oil to get you started.

For More Pump information:

User manual Down Load: click here now! http://viot.us/showmanual.php?model=VPD5

Frequently Asked Questions and Answers:click here now! http://viot.us/showFAQ.php?model=VPD5&sw=0
